6.1. "Smepmp" Extension for PMP Enhancements for memory access and execution prevention in Machine mode, Version 1.0

Being able to access the memory of a process running at a high privileged execution mode, such as the Supervisor or Machine mode, from a lower privileged mode such as the User mode, introduces an obvious attack vector since it allows for an attacker to perform privilege escalation, and tamper with the code and/or data of that process. A less obvious attack vector exists when the reverse happens, in which case an attacker instead of tampering with code and/or data that belong to a high-privileged process, can tamper with the memory of an unprivileged / less-privileged process and trick the high-privileged process to use or execute it.

Two mechanisms combine to prevent this attack vector. The first one prevents the OS from accessing the memory of an unprivileged process unless a specific code path is followed, and the second one prevents the OS from executing the memory of an unprivileged process at all times. RISC-V already includes support for the former through the sstatus.SUM bit, and for the latter by always denying supervisor execution of virtual memory pages marked with the U bit.

Terms:

PMP Entry: A pair of pmpcfg[i] / pmpaddr[i] registers.
PMP Rule: The contents of a pmpcfg register and its associated pmpaddr register(s), that encode a valid protected physical memory region, where pmpcfg[i].A != OFF, and if pmpcfg[i].A == TOR, pmpaddr[i-1] < pmpaddr[i].
Ignored: Any permissions set by a matching PMP rule are ignored, and all accesses to the requested address range are allowed.
Enforced: Only access types configured in the PMP rule matching the requested address range are allowed; failures will cause an access-fault exception.
Denied: Any permissions set by a matching PMP rule are ignored, and no accesses to the requested address range are allowed.; failures will cause an access-fault exception.
Locked: A PMP rule/entry where the pmpcfg.L bit is set.
PMP reset: A reset process where all PMP settings of the hart, including locked rules/settings, are re-initialized to a set of safe defaults, before releasing the hart (back) to the firmware / OS / application.

6.1.1. Threat model

The rationale that guided development of this extension is included in Section "Smepmp" Extension for PMP Enhancements for memory access and execution prevention in Machine mode.

Without the Smepmp extension, it is not possible for a PMP rule to be enforced only on non-Machine modes and denied on Machine mode, in order to allow access to a memory region solely by less-privileged modes. It is only possible to have a locked rule that will be enforced on all modes, or a rule that will be enforced on non-Machine modes and be ignored by Machine mode. So for any physical memory region which is not protected with a Locked rule, Machine mode has unlimited access, including the ability to execute it.

Without being able to protect less-privileged modes from Machine mode, it is not possible to prevent the mentioned attack vector. This becomes even more important for RISC-V than on other architectures, since implementations are allowed where a hart only has Machine and User modes available, so the whole OS will run on Machine mode instead of the non-existent Supervisor mode. In such implementations the attack surface is greatly increased, and the same kind of attacks performed on Supervisor mode and mitigated through the virtual-memory system, can be performed on Machine mode without any available mitigations. Even on implementations with Supervisor mode present attacks are still possible against the Firmware and/or the Secure Monitor running on Machine mode.

6.1.2. Smepmp Physical Memory Protection Rules

To address the threat model outlined in Section 6.1.1. Threat model, this extension introduces the RLB, MMWP, and MML fields in the mseccfg CSR and their associated rules. See Machine security configuration (mseccfg) register for the detailed specification of these fields and the corresponding rules.

The physical memory protection rules when mseccfg.MML is set to 1 are summarized in the truth table below.

Bits on pmpcfg register				Result
L	R	W	X	M Mode	S/U Mode
0	0	0	0	Inaccessible region (Access Exception)
0	0	0	1	Access Exception	Execute-only region
0	0	1	0	Shared data region: Read/write on M mode, read-only on S/U mode
0	0	1	1	Shared data region: Read/write for both M and S/U mode
0	1	0	0	Access Exception	Read-only region
0	1	0	1	Access Exception	Read/Execute region
0	1	1	0	Access Exception	Read/Write region
0	1	1	1	Access Exception	Read/Write/Execute region
1	0	0	0	Locked inaccessible region* (Access Exception)
1	0	0	1	Locked Execute-only region*	Access Exception
1	0	1	0	Locked Shared code region: Execute only on both M and S/U mode.*
1	0	1	1	Locked Shared code region: Execute only on S/U mode, read/execute on M mode.*
1	1	0	0	Locked Read-only region*	Access Exception
1	1	0	1	Locked Read/Execute region*	Access Exception
1	1	1	0	Locked Read/Write region*	Access Exception
1	1	1	1	Locked Shared data region: Read only on both M and S/U mode.*

: *Locked rules cannot be removed or modified until a PMP reset, unless mseccfg.RLB is set.

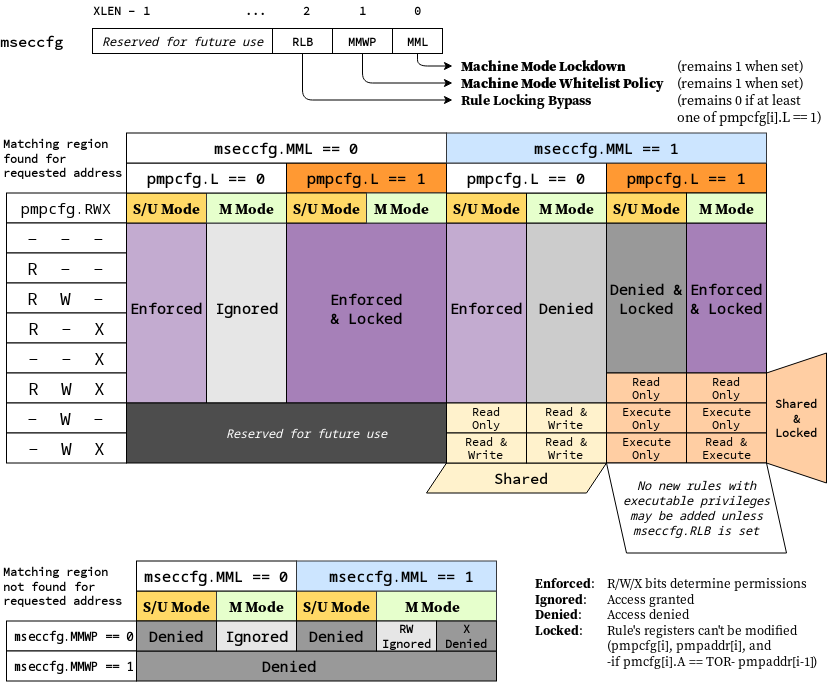

A visual representation of these rules is as follows:

6.1.3. Smepmp software discovery

Since all fields defined in mseccfg as part of this extension are locked when set (MMWP/MML) or locked when cleared (RLB), software can’t poll them for determining the presence of Smepmp. It is expected that BootROM will set mseccfg.MMWP and/or mseccfg.MML during early boot, before jumping to the firmware, so that the firmware will be able to determine the presence of Smepmp by reading mseccfg and checking the state of mseccfg.MMWP and mseccfg.MML.
