3.1. Messaging Protocol

The RPMI messaging protocol includes all the RPMI messages exchanged over a RPMI transport channel.

3.1.1. Message Types

The RPMI messaging protocol defines three types of RPMI messages namely: REQUEST, ACKNOWLEDGEMENT and NOTIFICATION. The Table 1 below summarize all RPMI message types.

An RPMI request message represents a specific control and management task which needs to be performed and it is also referred to as an RPMI service. Multiple related RPMI services are grouped logically into an RPMI service group such as Clock, Voltage, Performance, etc. Depending on the RPMI service, a RPMI request message may carry data required to perform the control and management task. An RPMI request message may have an associated response which is sent back as an RPMI acknowledgement message on the same RPMI transport channel. The RPMI acknowledgement message carries the status and optional response data from an RPMI request after it has been processed.

An RPMI request message which has an associated RPMI acknowledgement message is referred to as a NORMAL REQUEST otherwise it is referred to as a POSTED REQUEST.

An RPMI notification message is an asynchronous message from the platform microcontroller to the application processors which is used to inform the later about certain events that have occurred in the system. There is no response required for an RPMI notification message from the application processors.

Table 1. RPMI Message Types
Message Type Message Subtypes Description

REQUEST

NORMAL REQUEST
Request with Acknowledgement.

POSTED REQUEST
Request without Acknowledgement.

Messages for requesting a service from the platform microcontroller.

ACKNOWLEDGEMENT

Not applicable

Response message corresponding to a NORMAL REQUEST message.

NOTIFICATION

Not applicable

Asynchronous messages from the platform microcontroller representing system events.

3.1.2. Message Format

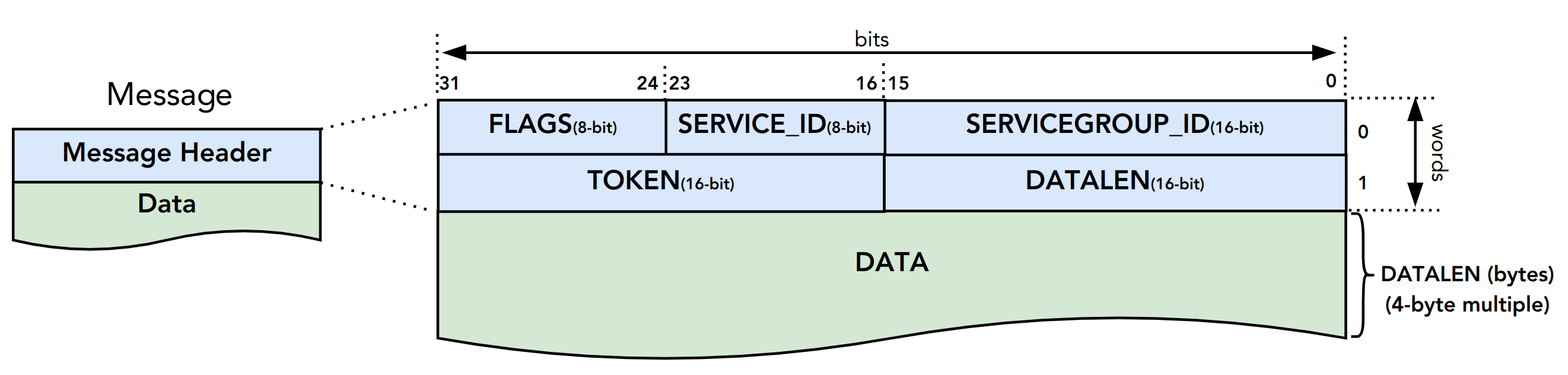

An RPMI message consists of a fixed 8-byte message header followed by a variable sized optional message data as show in the Figure 8 below. The byte ordering of an RPMI message is defined by the underlying RPMI transport.

700
Figure 8. RPMI Message Format

3.1.2.1. Message Layout Tables

The RPMI message header and message data are split into multiple words, where each word is 4-byte wide and indexed starting from 0. The RPMI message layout is presented throughout the RPMI specification in the form of tables as shown in the Table 2 below. Some of the columns listed below may be omitted in the layout tables if not required.

Table 2. Message Layout Table Example
Word Name Type Description

Index of the 4-byte word at which the field starts in the message header or message data.

Name of the field. Name may be omitted if not required.

Type of field, eg: int32 or uint32, etc.

Description and interpretation of the field.

3.1.2.2. Message Header

The layout of the 8-byte wide RPMI message header is shown in the Table 3 below. The RPMI message header provide a unique identity to the corresponding RPMI message withing an RPMI context.

Table 3. RPMI Message Header
Word Description

0
Bits Name Description

[31:24]

FLAGS

Message flags.

FLAGS[7:4]: Reserved and must be 0.
FLAGS[3]: Reserved for RPMI transport.

Refer the corresponding RPMI transport chapter for more details.
FLAGS[2:0]: Message Type.

0b000: NORMAL_REQUEST.
0b001: POSTED_REQUEST.
0b010: ACKNOWLEDGEMENT.
0b011: NOTIFICATION.
0b100 - 0b111: Reserved for future use.

[23:16]

SERVICE_ID

Service ID.
8-bit wide identifier representing a RPMI service. This identifier is unique within a given RPMI service group.

[15:0]

SERVICEGROUP_ID

Service group ID.
16-bit wide unique identifier representing a RPMI service group.

1
Bits Name Description

[31:16]

TOKEN

Message token.
16-bit number for a RPMI message.

[15:0]

DATALEN

Message data length.
Stores the size of the message data in bytes. The value stored in this field must be a multiple of 4-byte or 0 if no message data is present.

For an RPMI normal request message, the TOKEN, SERVICEGROUP_ID, and SERVICE_ID fields of the RPMI acknowledgement message must have the same values as corresponding fields in the RPMI request message. The DATALEN field of the RPMI acknowledgement message must be set according to the data carried by this acknowledgement.

The message token will help the application processors to keep track of the origin of the request when it receives a response. This is useful when the multiple application processors are sharing the same queues. For example, two different application processors may send the same type of request message with the same SERVICEGROUP_ID and SERVICE_ID. When the response messages for both requests are received from the platform microcontroller, the token helps distinguish which response belongs to which request. For other message types such as RPMI posted request and RPMI notification messages, the implementations may use the token for debugging or logging purposes.
The RPMI specification recommends monotonically increasing token numbers and the token number can be initialized from any value without any constraints.

For an RPMI notification message, the platform microcontroller will set appropriate values for the TOKEN, SERVICEGROUP_ID, and DATALEN fields whereas the SERVICE_ID field must be always set to 0x0.

3.1.2.3. Message Data

The message data of an RPMI message is optional and variable sized. The maximum message data size of an RPMI message depends on the underlying RPMI transport implementation.

The message data carries different information based on the RPMI message type:

  • An RPMI request message carries data required to perform the control and management task.

  • An RPMI acknowledgement message carries the status and optional response data.

  • An RPMI notification message carries an array of RPMI events.

The message data format for RPMI request message and RPMI acknowledgement message is defined separately for each RPMI service. The message data format for RPMI notification message is defined in the [Notifications].

An RPMI acknowledgement message must have a signed STATUS field as the first 4-byte word of the message data containing an error code defined in the [Possible Error Codes]. An RPMI service where the response data exceeds the maximum message data size can use multipart RPMI acknowledgement messages.

If a physical address is passed in the message data of any message type, then it refers to the physical address space of the application processor.

3.1.3. Notifications

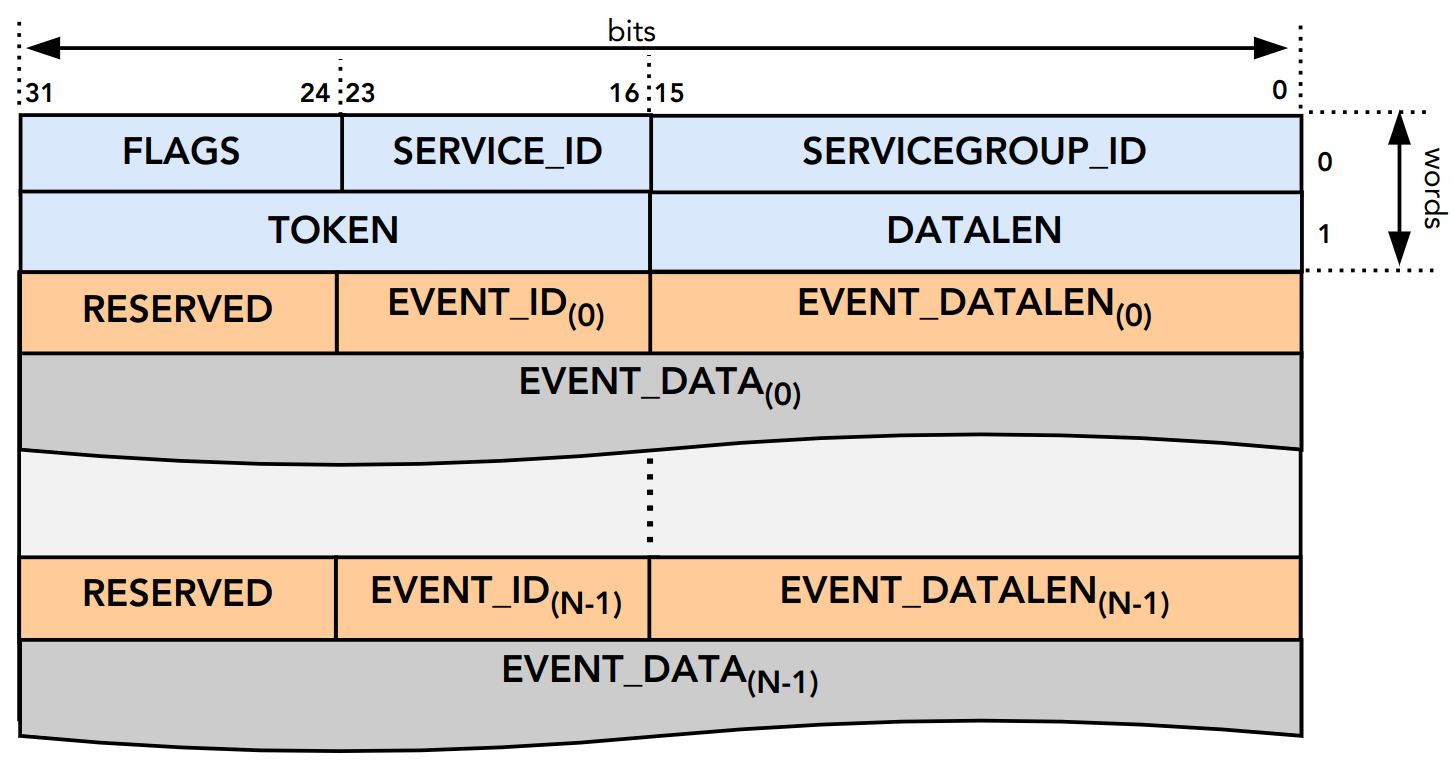

The platform microcontroller can use RPMI notification message to notify application processors about system events which are also referred to as RPMI events. An RPMI notification message has no associated response or acknowledgement from application processors. Multiple RPMI events can be packed into a single RPMI notification message depending on the space available in the message data. Each RPMI event may have additional data associated with it based on the type of RPMI event. Any action required for handling an RPMI event depends on the application processors. The format of an RPMI notification message in shown in the Figure 9 below.

The RPMI events are defined separately for each RPMI service group. An RPMI service group must have a ENABLE_NOTIFICATION service with a fixed SERVICE_ID=0x01 which can be used by the application processors to enable or disable notification messages for a particular RPMI event defined by the RPMI service groups. By default, notifications are disabled for all RPMI events of an RPMI service group. The platform microcontroller only sends RPMI notification messages for RPMI events which are enabled by the application processors. If multiple RPMI events are supported by an RPMI service group then the application processors must enable to each RPMI event individually.

500
Figure 9. RPMI Notification Message Format

3.1.3.1. Events

An RPMI event consists of a header containing two fields: EVENT_ID (8-bit) and EVENT_DATALEN (16-bit). An RPMI event may have associated data whose size is specified in the EVENT_DATALEN field of the header and this data size must be a multiple of 4-byte.

The number of RPMI events that can be stored in a single RPMI notification message depends on the maximum RPMI message data size. The DATALEN field in the RPMI message header represents the aggregate size of all RPMI events included in RPMI message data.

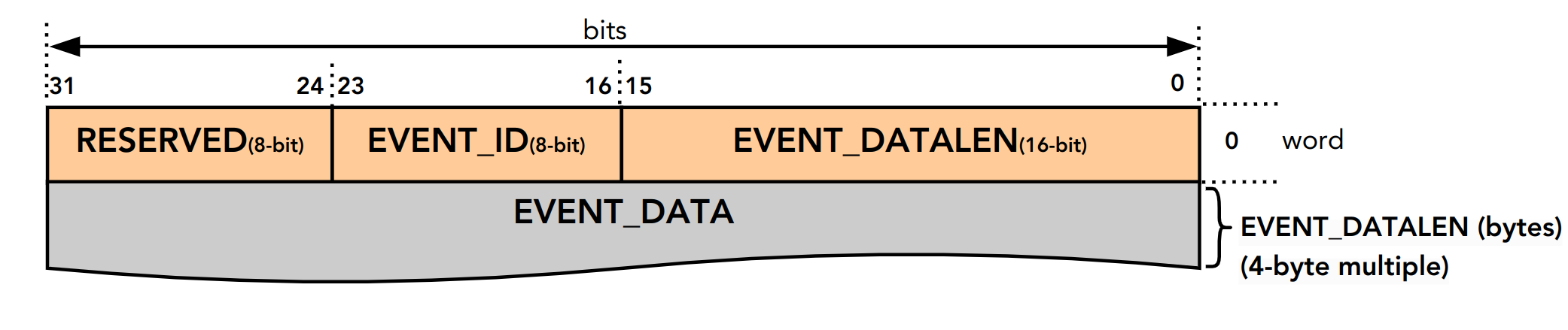

The Table 4 below defines the format of an RPMI event whereas the Figure 10 below shows a pictorial view of an RPMI event. The format of the event data for each RPMI event is defined separately by an RPMI service group. If multiple RPMI events are packed into a single RPMI notification message then the ordering of RPMI events within the RPMI notification message is implementation defined.

The platform microcontroller is not required to include every occurrence of an event of the same type in a notification message. Instead, the platform microcontroller must only include the most recently occurred event of the same type.

Table 4. Event Format
Word Name Description

0

EVENT_HDR

32-bit field represents a single event.

Bits Name Description

[31:24]

Reserved

Reserved and must be 0.

[23:16]

EVENT_ID

Unique identifier for an event in a service group.

[15:0]

EVENT_DATALEN

16-bit field to store event data size in bytes.

1

EVENT_DATA

Event data whose size is specified by EVENT_DATALEN.
800
Figure 10. Event Header

3.1.4. Possible Error Codes

The Table 5 below lists the error codes which can be returned by an RPMI service in the STATUS field of the RPMI acknowledgement message.

Table 5. RPMI Error Codes
Name Error Code Description

RPMI_SUCCESS

0

Service has been completed successfully.

RPMI_ERR_FAILED

-1

Failed due to general error.

RPMI_ERR_NOT_SUPPORTED

-2

Service or feature is not supported.

RPMI_ERR_INVALID_PARAM

-3

One or more parameters passed are invalid.

RPMI_ERR_DENIED

-4

Requested operation denied due to insufficient permissions or failed dependency check.

RPMI_ERR_INVALID_ADDR

-5

One or more addresses are invalid.

RPMI_ERR_ALREADY

-6

Operation already in progress or state changed already for which the operation was performed.

RPMI_ERR_EXTENSION

-7

Error in extension implementation that violates the extension specification or the extension version mismatch.

RPMI_ERR_HW_FAULT

-8

Failed due to hardware fault.

RPMI_ERR_BUSY

-9

Service cannot be completed due to system or device is busy.

RPMI_ERR_INVALID_STATE

-10

Invalid state.

RPMI_ERR_BAD_RANGE

-11

Bad or invalid range.

RPMI_ERR_TIMEOUT

-12

Failed due to timeout.

RPMI_ERR_IO

-13

Input/Output error.

RPMI_ERR_NO_DATA

-14

Data not available.

-15 to -127

Reserved.

< -127

Vendor or Implementation specific.
